Kood: MG4246538

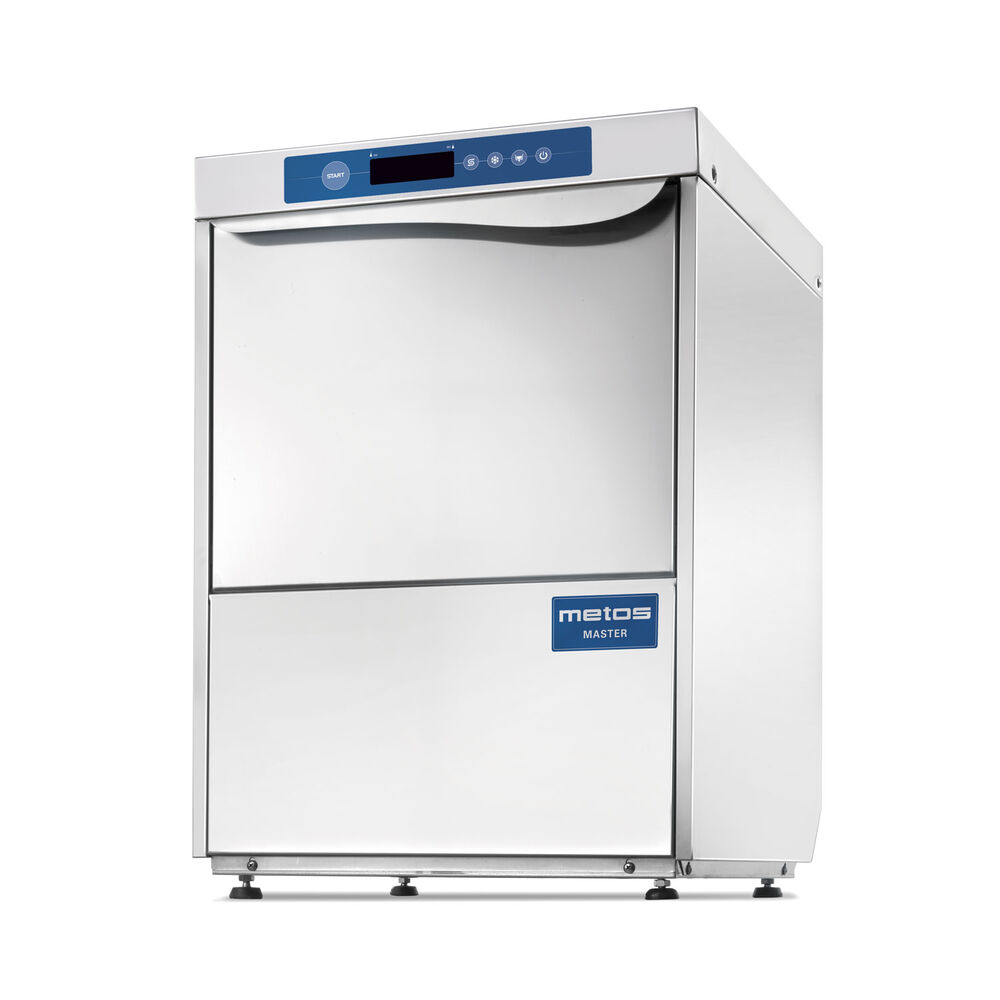

Dishwasher Metos LUX 60EL PLUS H+ with bottle kit

High-Tech double skin under-counter dishwasher is designed for heavy duty use in professional kitchens and restaurants. The digital control panel is easy to use…

Hinnakirja hind 0,00 €
Tarnetoode
High-Tech double skin under-counter dishwasher is designed for heavy duty use in professional kitchens and restaurants. The digital control panel is easy to use and its signal lights indicate the different cycles. Diagnostic function supports self-monitoring. The real competitive advantage of the bottlewasher on the market is that the latter does not only rinse but also perfectly washes bottles. The Hygiene+ models include 2 special cycles, a short one of 180 seconds and a longer one of 630 seconds, ensuring compliance with high levels of hygiene thanks to high temperatures and long cycles.

- Double skin AISI 304 machine and double skin insulated door
- Sloped deep-formed tank
- Wash arms in stainless steel with unblockable nozzles and lightweight rinse arms in composite material
- Deep-formed rack supports
- Anti-drop roof panel
- Insert instead of the lower arms and special basket
- Capacity 12 bottles: max height 325 mm (320 mm in the middle)
- Special cycle for bottles
- Multivoltage
- Detergent and rinse-aid dosage setting, directly from the control panel
- Wash and rinse temperatures displayed
- The water temperature in the boiler remains constant at 85°C throughout the rinse, as the boiler refill only occurs once the rinse cycle is done
- Double tight-mesh filter system in stainless steel
- Intuitive START button with multicolour backlight for a quick visualization of the machine status
- Self-cleaning cycle
- Soft Start wash pump
- Thermal insulation of boiler
- Soft door opening and programmable START function when the door gets closed
- OPTIMAL-RINSE (optimal rinse technology): water consumption rate among the lowest on the market, consequent reduction of electricity and chemicals consumptions
- Built-in peristaltic detergent dispenser and built-in rinse-aid dispenser. Peristaltic rinse-aid dispenser included in the Plus ve rsions.
- Water consumption and working time control system
- PLUS system guarantees rinse with constant temperature, pressure and stabilized consumption
- The Break Tank system prevents the heated water of the boiler to go back and mix with the fresh water supply
- rack size 500x500 mm
- boiler capacity 5,7 l

Delivery includes:
- detergent dispenser
- basket for plates
- basket for glasses
- cutlery cylinder
- connection hose for tap water
- soft start: progressive start of the wash pump
- bottle washer kit

Optional (to be ordered separately):
- stand
- pressure boosting pump (to be ordered together with the dishwasher)
- steel reinforced hose
- extra racks
- pre-wash tables and basket trolleys
Üldine
Kirjeldus Dishwasher Metos LUX 60EL PLUS H+ with bottle kit
Dimensions and Capacity
Laius mm 600
Sügavus mm 610
Kõrgus mm 850
Pakendi maht 0,451 m3
Pakendi mõõdud (LxPxH) 68x67x99 cm
Neto kaal 65 kg
Pakendi kaal 75 kg
Technical information
Ühendusvõimsus kW 5.15
Kaitsme võimsus A 16
Elektripinge V 400
Faaside arv 3NPE
Sagedus Hz 50
Turvaklass (IP) 24
Elektriühenduse tüüp Poolfikseeritud
Elektriühenduse kõrgus mm 45
Mäkused, elekter Multivoltage- rewired
Külm vesi, ühenduse kõrgus mm 65
Soojavee ühendus diam. 3/4"
Soojavee vool l/min 10
Soojaveeühenduse kõrgus mm 45
Äravooluühenduse diameeter 24
Äravool l/s 3
Äravooluühendus kõrgus mm 65
Müratase dB 62
Boileri võimsus W 4.5
Boileri maht L 11
Funktsioonid
Tööpõhimõte elektrooniline
Puhastamine pesuprogramm
Pesukorvi mõõdud mm 500x500
Programmeritavus valmis programmid,programmeeritav
Programmide arv 4
Isolatsioon isoleeritud
Pesumeetod normaalne pesu,klaasipesu
Tühjenduspump Ei
Automaatne kubu tõstmine Ei
Mudel LUX BOTTLEWASHER
Energy and Consumption
Veetarve Water consumption litres/cycle 2.3
Toite tüüp elekter
