Code: MG3752004

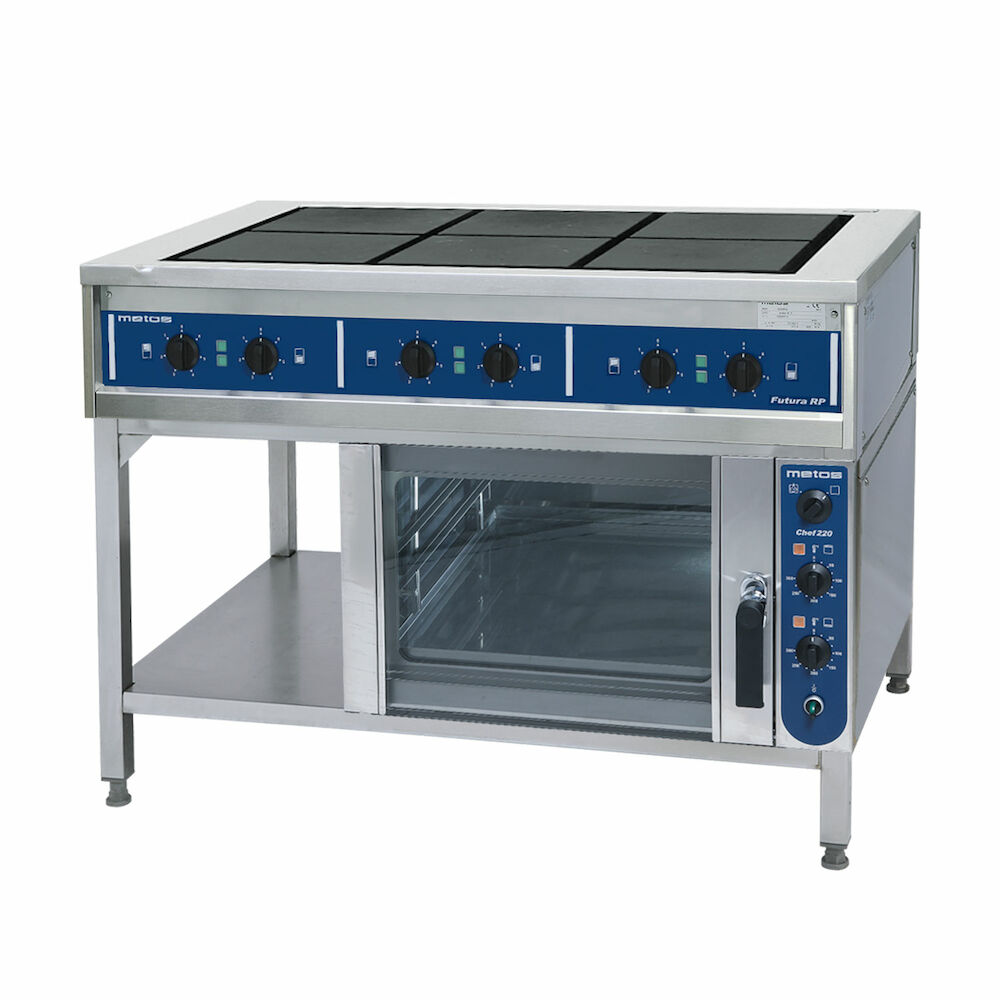

Range+baking oven Metos Futura RP6/220 400V3N~

Cooking plates made of cast iron, external surfaces stainless steel. Six 3 kW cooking plates, size 300x300 mm

On order

Cooking plates made of cast iron, external surfaces stainless steel. Six 3 kW cooking plates, size 300x300 mm
- hinged plates make cleaning easy
- 7-steps power regulator
- signal lights
- stand with Metos Chef 220 roasting oven, capacity 2 x GN1/1 or 1 x GN2/1

Dimensions and Capacity
Product capacity	1x GN2/1
Item width mm	1200
Item depth mm	800
Item height mm	900
Package volume	1.17 m3
Package dimensions (LxWxH)	130x90x100 cm
Net weight	158 kg
Package weight	213 kg

Technical information
Connection power kW	22.7
Fuse Size A	40
Connection voltage V	400/230
Number of phases	3NPE
Frequency Hz	50
Startup current A	36.2
Protection rating (IP)	X3
Type of electrical connection	Semifixed
Electrical conn. height mm	160
Remarks (electrical)	Working current 37A

Features
Raw material	Stainless steel
Type	electric
Operation type	electromechanical
Temperature area ºC	50-300
Top material type	cast iron
Cooking zone	6
Cooking zone size mm	300x300
Cooking zone power kW	3
Power range kW	22.7

Range+baking oven Metos Futura RP6/220 400V3N~

User Manual FI

User Manual EN

User Manual SE

Installation drawing PDF

Product sheet EN

Product sheet FI

Product sheet NO

Product sheet SE

2D CAD symbol

CAD Face symbol

3D CAD symbol

Revit / BIM symbol
