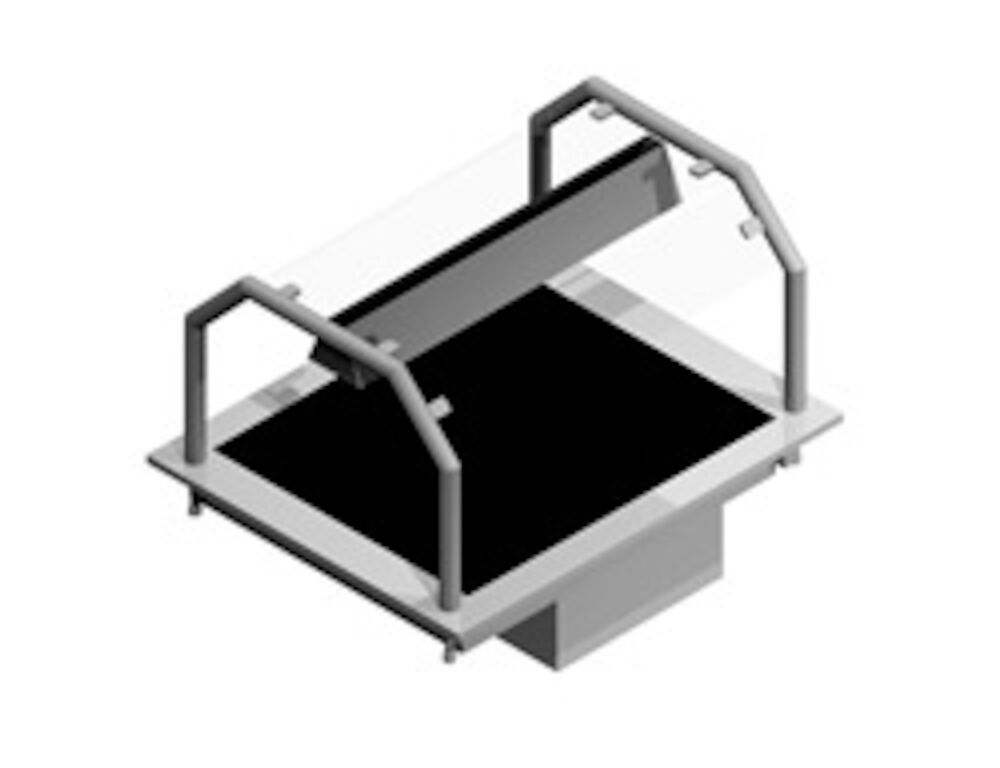

Ceramic Plate Metos Drop-In CPL 800 SKY H

Heated cheramic plate 2 x GN 1/1. Drop-in model without side panels

On order

Heated cheramic plate 2 x GN 1/1. Drop-in model without side panels
- unit's edge is 15 mm above the furniture's top plate
- temperature's adjusting with power controller
- SKY upper shelf with infrared radiator
- width of upper shelf 300 mm
- shelf made of hardened glass

Dimensions and Capacity
Product capacity	2 GN 1/1
Inside measures mm	800×650×355/734 mm
Item width mm	800
Item depth mm	650
Item height mm	355/734
Package volume	0.47 m3
Package dimensions (LxWxH)	85x70x79 cm
Net weight	40 kg
Package weight	40 kg

Technical information
Connection power kW	0.92
Fuse Size A	10
Connection voltage V	220-240
Number of phases	1NPE
Frequency Hz	50/60
Startup current A	4
Protection rating (IP)	43
Type of electrical connection	Plug

Features
Function	warm
GN size	2x1/1
Power range kW	0.92
Shelf size mm	300
Lighting	halotherm
Upper part	with upper part
Model	Sky
