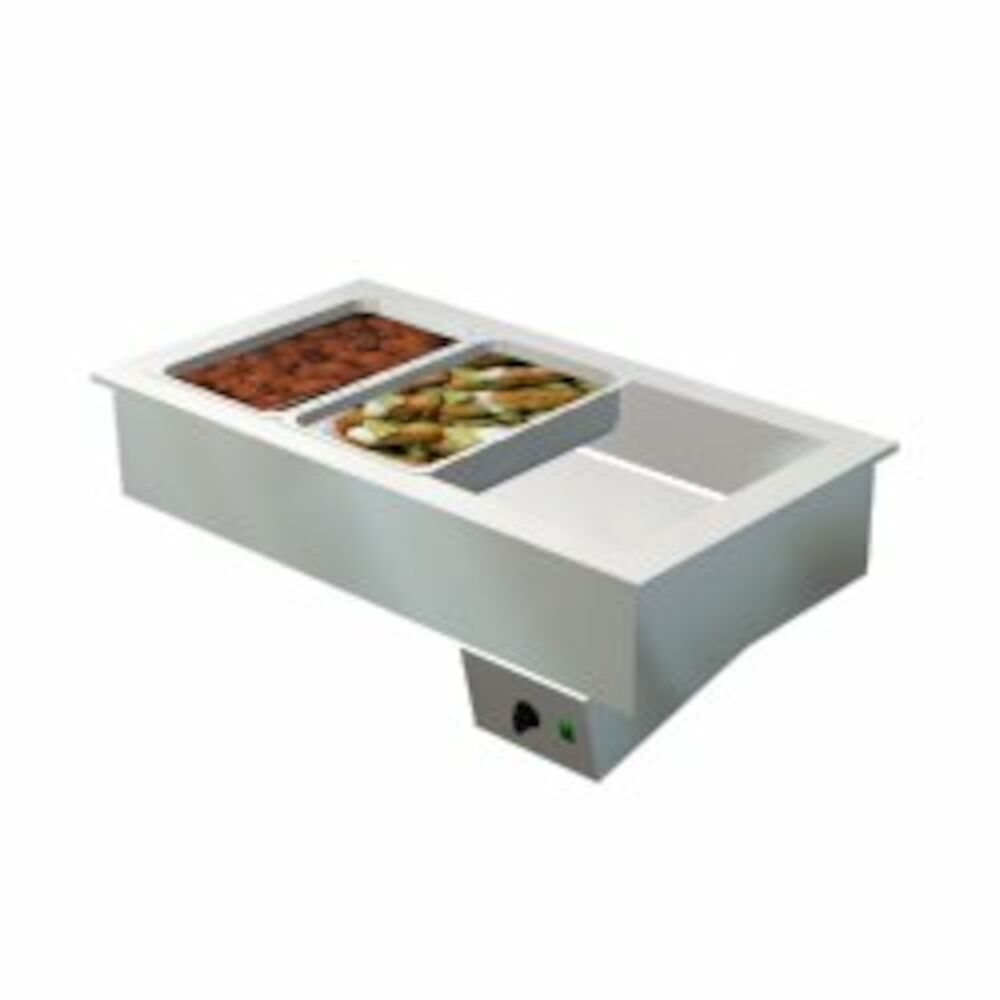

Bain Marie Metos Drop-In BM 1200

Bain marie GN 3/1, depth 160 mm. Structure of the basin totally seamless and all the corners have been rounded for easier cleaning

On order

Bain marie GN 3/1, depth 160 mm. Structure of the basin totally seamless and all the corners have been rounded for easier cleaning
- there is an outlet valve on the bottom of the basin with hose length of 1 m
- drop-in model without side panels
- basin's edge is 15 mm above the furniture's top plate
- temperature's adjusting with thermostat

Dimensions and Capacity
Product capacity	3 GN 1/1
Item width mm	1200
Item depth mm	650
Item height mm	355
Package volume	0.718 m3
Package dimensions (LxWxH)	125x70x82 cm
Net weight	30 kg
Package weight	35 kg

Technical information
Connection power kW	1.65
Fuse Size A	16
Connection voltage V	230
Number of phases	1NPE
Frequency Hz	50/60
Startup current A	7.2
Protection rating (IP)	43
Type of electrical connection	Plug
Drain diameter	21/16

Features
Operation type	electromechanical
Cleaning	hand wash
Function	warm
GN size	3/1
Power range kW	1.65
Humidification	No
